HP PSV
Engineered with expansion stages & acoustic absorbers. Equipped with flexible rain hat and flexible inlet connection.

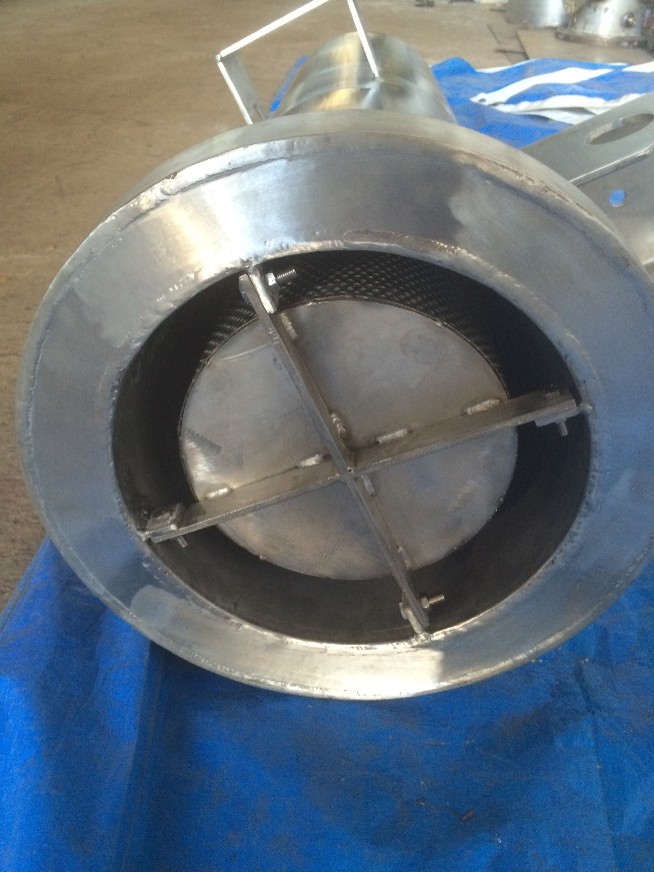

Stainless Steel
Stainless steel blow-off silencer fitted with round shaped acoustic baffles for high-purity and corrosive gas venting.

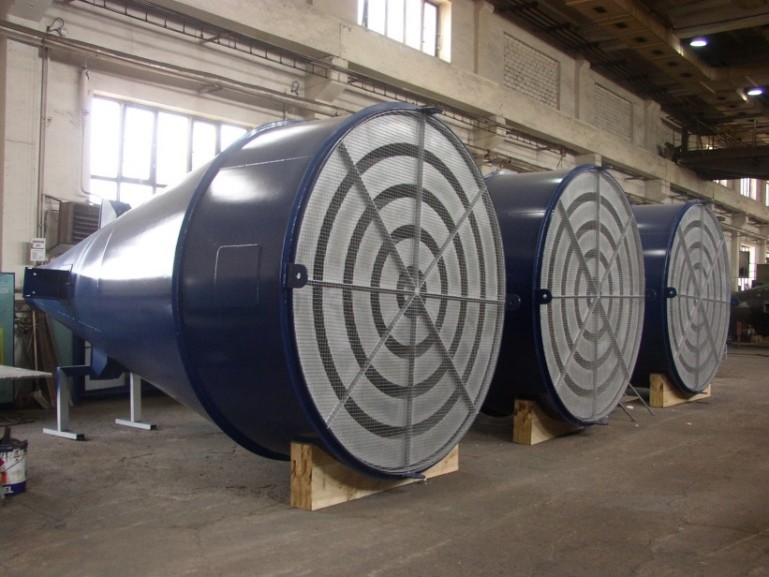

Carbon Steel
Heavy carbon steel venting & depressurization silencer with internal round shaped baffles for severe flow velocity.

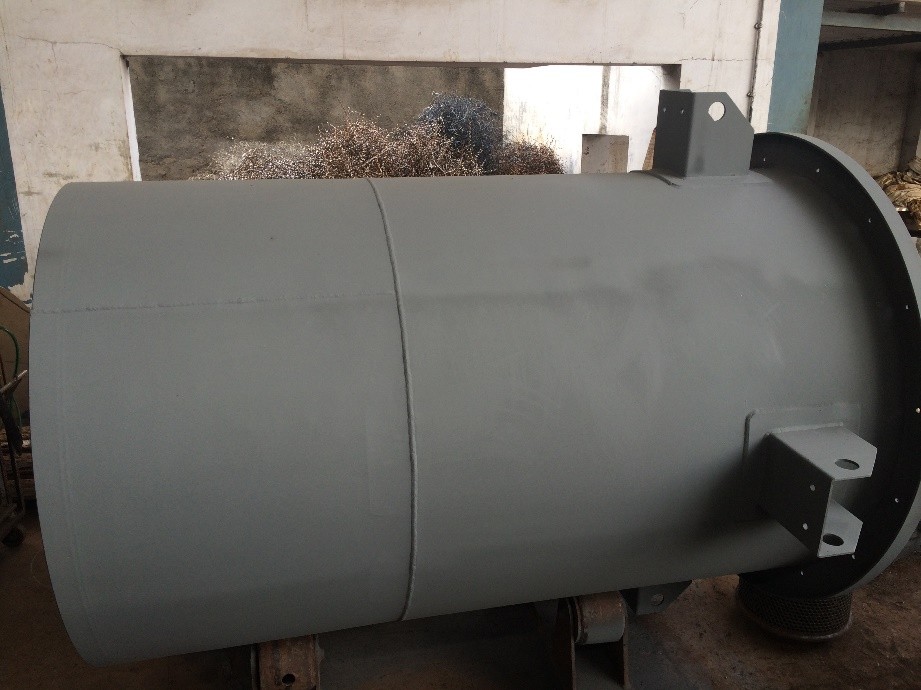

Square Baffles
Industrial carbon steel blow-off silencer featuring square shaped acoustic baffles and an integrated blow-off cone.

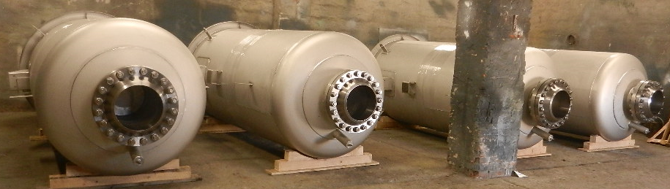

IBR Certified
Stainless steel steam blow-off silencer engineered to Indian Boiler Regulation (IBR) with condensate drain silencer.

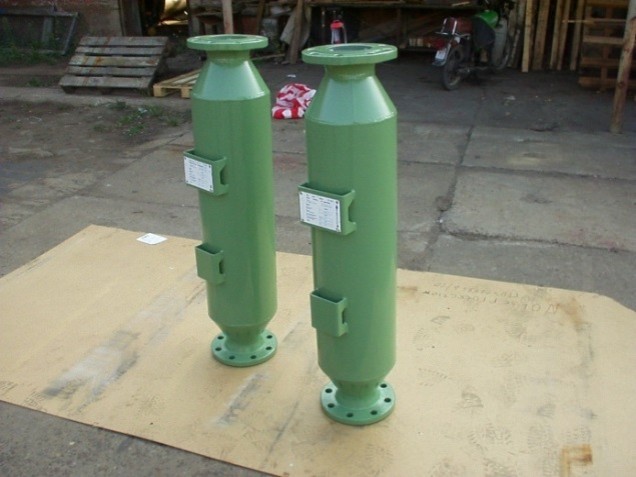

Compressor Vent
High-capacity blow-off silencer engineered specifically for main air compressor depressurization and venting lines.
Multi-Nozzle
High-temperature steam blow-off silencer designed with a multi-nozzle inlet header for controlled depressurization.
Steel Mill
Severe duty 2-stage blow-off silencer designed for hot air exhaust and high-temperature venting in steel plants.
Boiler Baffle
Post-boiler acoustic baffle assembly where sound waves passing through baffles are absorbed by mineral wool.

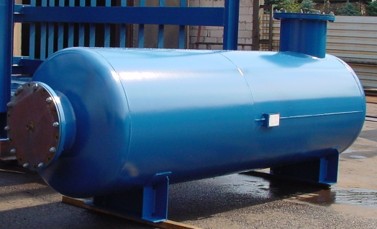

5m³/s Flow
Resonance – Absorption type silencer designed for maximum sound reduction at 105 Hz.
BASF Antwerp
Absorption-Inline Silencer without sand-shell engineered for heavy industrial air compressor systems.
λ/4 Resonator
Interference pipe silencer engineered as a λ/4 resonator for tuned acoustic interference inside pressure pipelines.

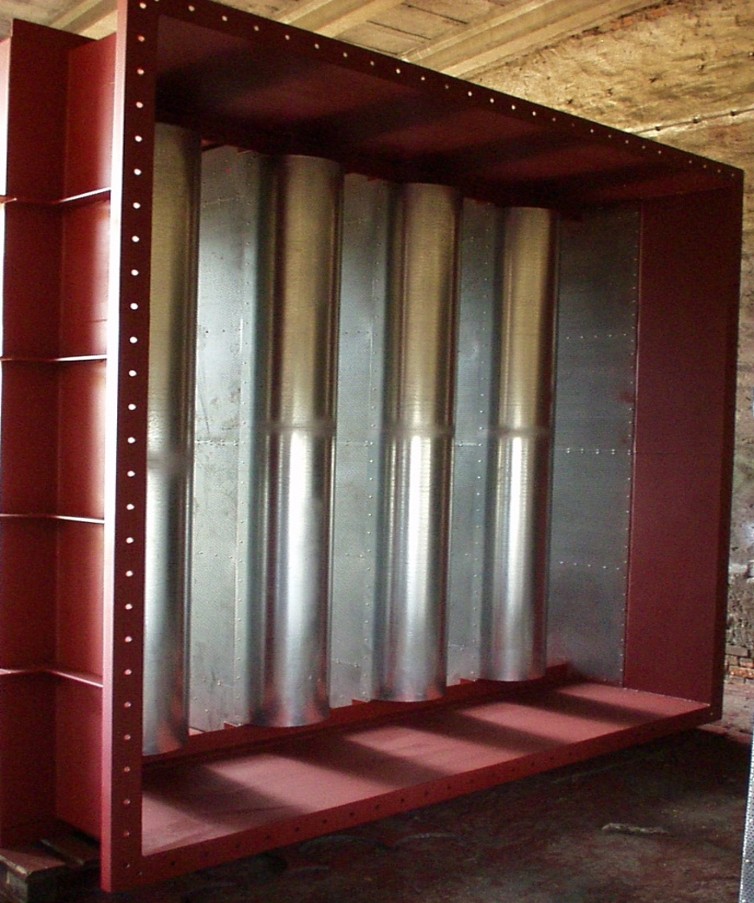

Bypass Stack
High-temperature thermal baffle silencer panels customized for turbine & boiler bypass stack channels.
Venting Stack
Aerodynamic acoustic baffle banks designed for insertion into industrial exhaust and venting stack structures.

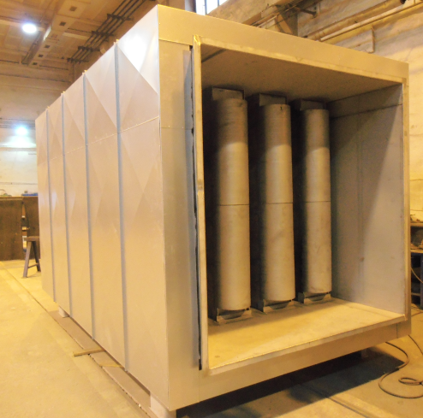

Oxygen Line
Gas turbine exhaust silencer with baffles casing and insulation.

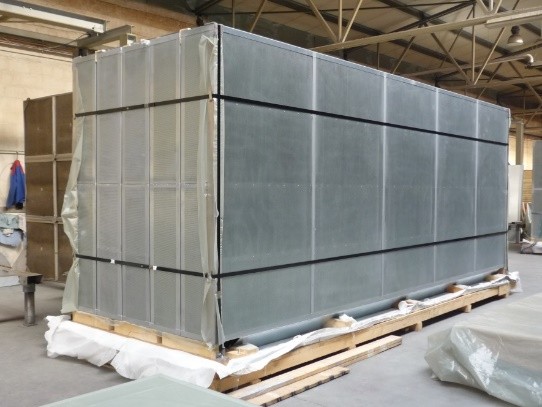

Instrument Air
Galvanized steel (GI) absorption-inline silencer for instrument air compressor lines.

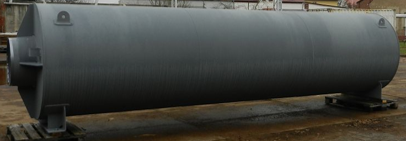

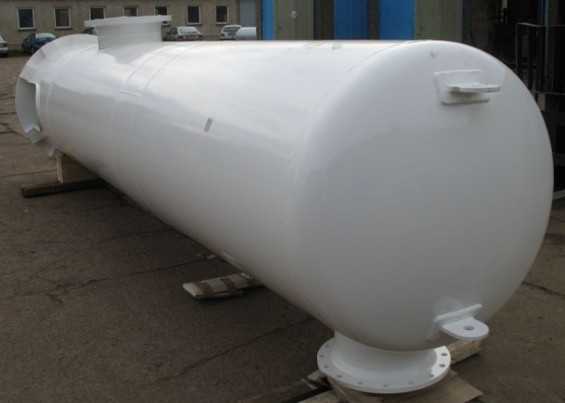

10m³/s Air
Resonance–Absorption Silencer custom engineered for Dresser Rootsmaschine positive displacement air blowers.
Sand Shell 7bar
Absorption-Inline Silencer featuring an outer acoustic sand shell for structural shell vibration reduction.

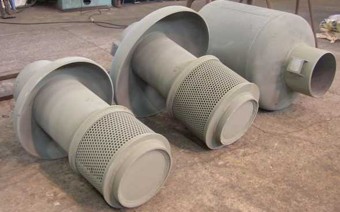

Bypass Dump Tube
Dump tubes for defined expansion of high-pressure turbine bypass steam down to vacuum / 0.1 bar(a).
Inline Sand Shell
Custom adjusted and developed noise hoods & movable enclosures to reduce machinery sound emissions to strict limits.

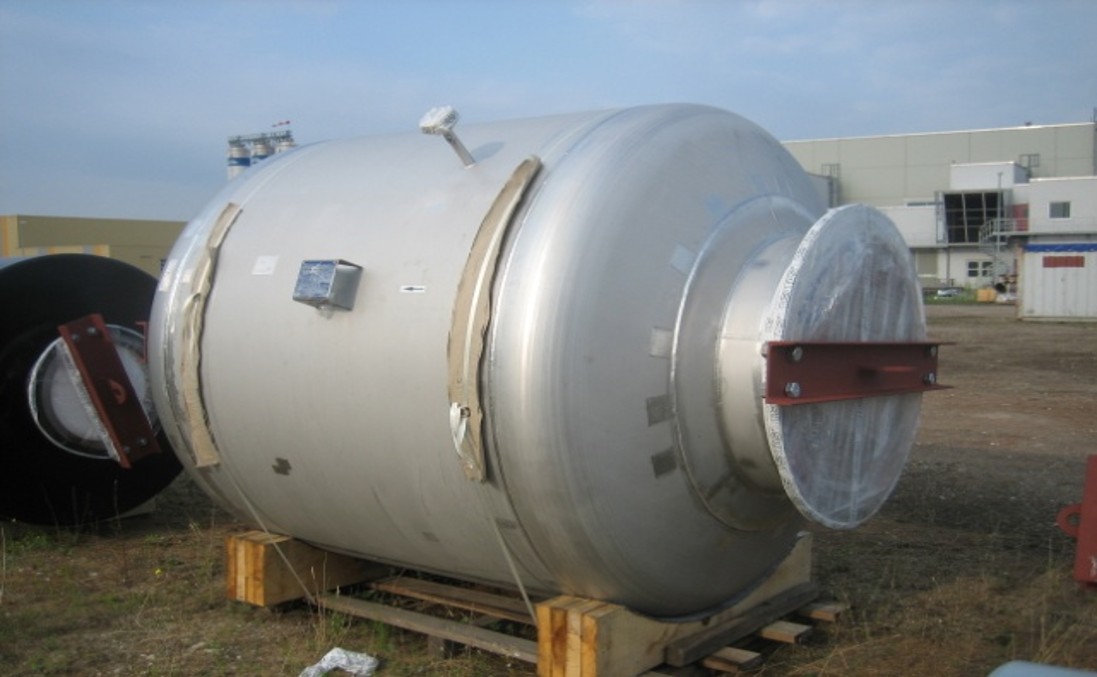

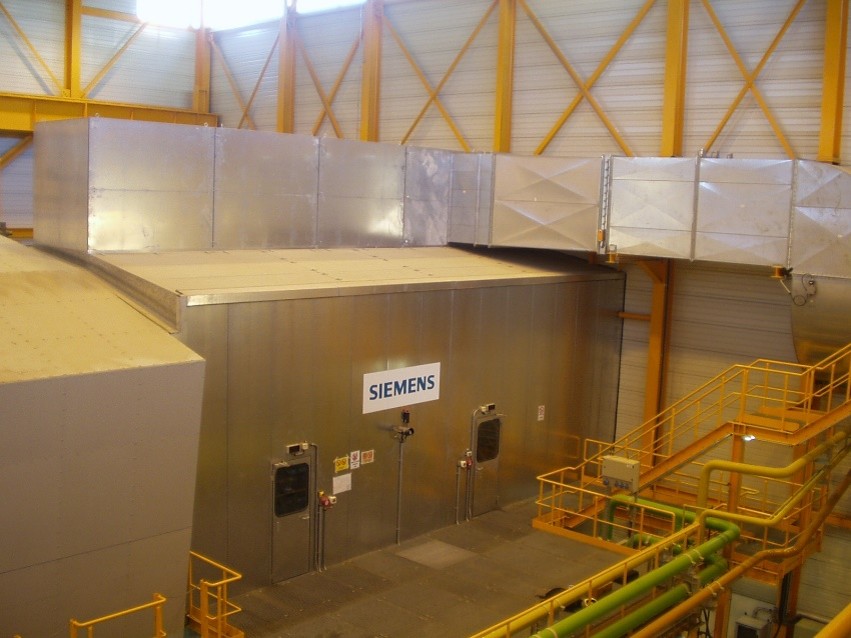

Gas Turbine
Heavy-duty acoustic noise enclosure cabins specifically developed for power plant gas turbine sound insulation.
Iso-dB Prediction
Iso-dB lines mapping of equal loudness, partial sound level calculation at emission points, and noise control simulation.
High-pressure venting creates severe acoustic turbulence and shockwave noise. W&P NOISEPROTECTION silencers combine three thermodynamic stages to achieve maximum attenuation with minimum pressure drop:
Single and multi-stage pressure breakdown orifices convert high-pressure acoustic energy into controlled flow velocity.
Controlled gas expansion stage prevents turbulent vortex creation and eliminates acoustic shockwave formation.
High-efficiency absorption baffles and perforated core liners absorb residual high-frequency acoustics up to 55 dB(A).
| Series Code | Silencer Category | Max Operating Temp (°C) | Design Pressure (bar) | Attenuation Range | Primary Application |
|---|---|---|---|---|---|
| Series 556G | Multi-stage Blow-off Silencer | Up to +650 °C | Up to 160 bar | 35 – 55 dB(A) | Boiler start-up & safety relief valves |
| Series 352G | Heavy Inline Pressure Silencer | Up to +500 °C | Up to 100 bar | 25 – 45 dB(A) | Compressor outlets & gas pipelines |
| Series 681B | Aerodynamic Fan Duct Baffle | Up to +350 °C | Atmospheric / Low P | 15 – 38 dB(A) | Ventilators & cooling tower exhausts |
| Series Kapsel | Acoustic Enclosure Cabin | Ambient / Custom HVAC | Atmospheric | 25 – 48 dB(A) | Turbines, generators & heavy machinery |
ISO 9001 : 2015 Certified Quality Management System across all engineering and production facilities.
